一种宽带双极化共享折合臂天线设计

任晓飞 王琼 贺双

任晓飞,王琼,贺双. 一种宽带双极化共享折合臂天线设计[J]. 电波科学学报,2022,37(5):862-867. DOI: 10.12265/j.cjors.2021280
引用本文: 任晓飞,王琼,贺双. 一种宽带双极化共享折合臂天线设计[J]. 电波科学学报,2022,37(5):862-867. DOI: 10.12265/j.cjors.2021280
REN X F, WANG Q, HE S. Design of a wideband dual-polarized shared folded dipole antenna[J]. Chinese journal of radio science,2022,37(5):862-867. (in Chinese). DOI: 10.12265/j.cjors.2021280
Citation: REN X F, WANG Q, HE S. Design of a wideband dual-polarized shared folded dipole antenna[J]. Chinese journal of radio science,2022,37(5):862-867. (in Chinese). DOI: 10.12265/j.cjors.2021280

一种宽带双极化共享折合臂天线设计

doi: 10.12265/j.cjors.2021280
基金项目: 国家稳定支持项目(A131906W08)
详细信息
    作者简介:

    任晓飞:(1981—),男,陕西人,工学博士,中国电波传播研究所高级工程师,研究方向为宽带阵列天线、智能天线、阵列信号处理等

    王琼:(1992—),女,河南人,硕士,中国电波传播研究所工程师,研究方向为微带天线、阵列天线等

    贺双:(1993—),女,山东人,硕士,中国电波传播研究所助理工程师,研究方向为超宽带天线、阵列天线理论等

    通讯作者:

    任晓飞 E-mail: renxf@crirp.ac.cn

  • 中图分类号: TN828

Design of a wideband dual-polarized shared folded dipole antenna

  • 摘要: 针对L、S波段双极化信号宽带监测,提出了一种宽带双极化共享折合臂(dual-polarized shared-folded-dipole,DPSFD)天线. 天线采用宽度渐变振子臂和共享折合枝节结构,这种设计使天线的相对带宽由原来的57.8%拓宽到85.7%,并改善了天线高频段方向图分裂的问题. 理论和实验测试表明:天线在1.6~4 GHz频带范围内,电压驻波比小于2,典型增益为8.3 dBi,天线尺寸仅为最低工作频率对应波长的28%. 新设计的天线可应用于通信信号宽带双极化监测系统中.

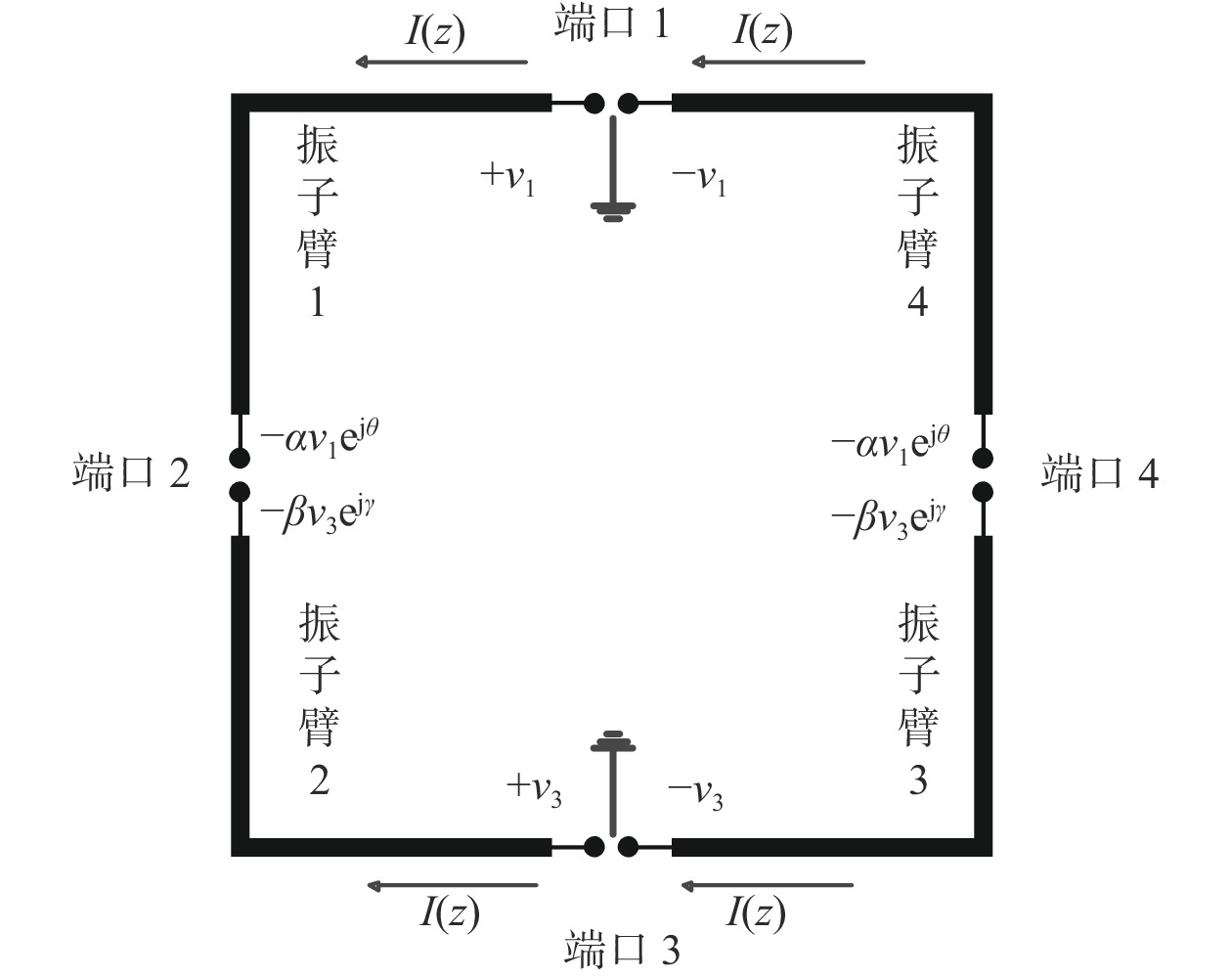

  • 图  1  DPSD天线等效电路图

    Fig.  1  Equivalent circuit for the DPSD antenna

    图  2  宽带DPSFD天线模型

    Fig.  2  The model of the wideband DPSFD antenna

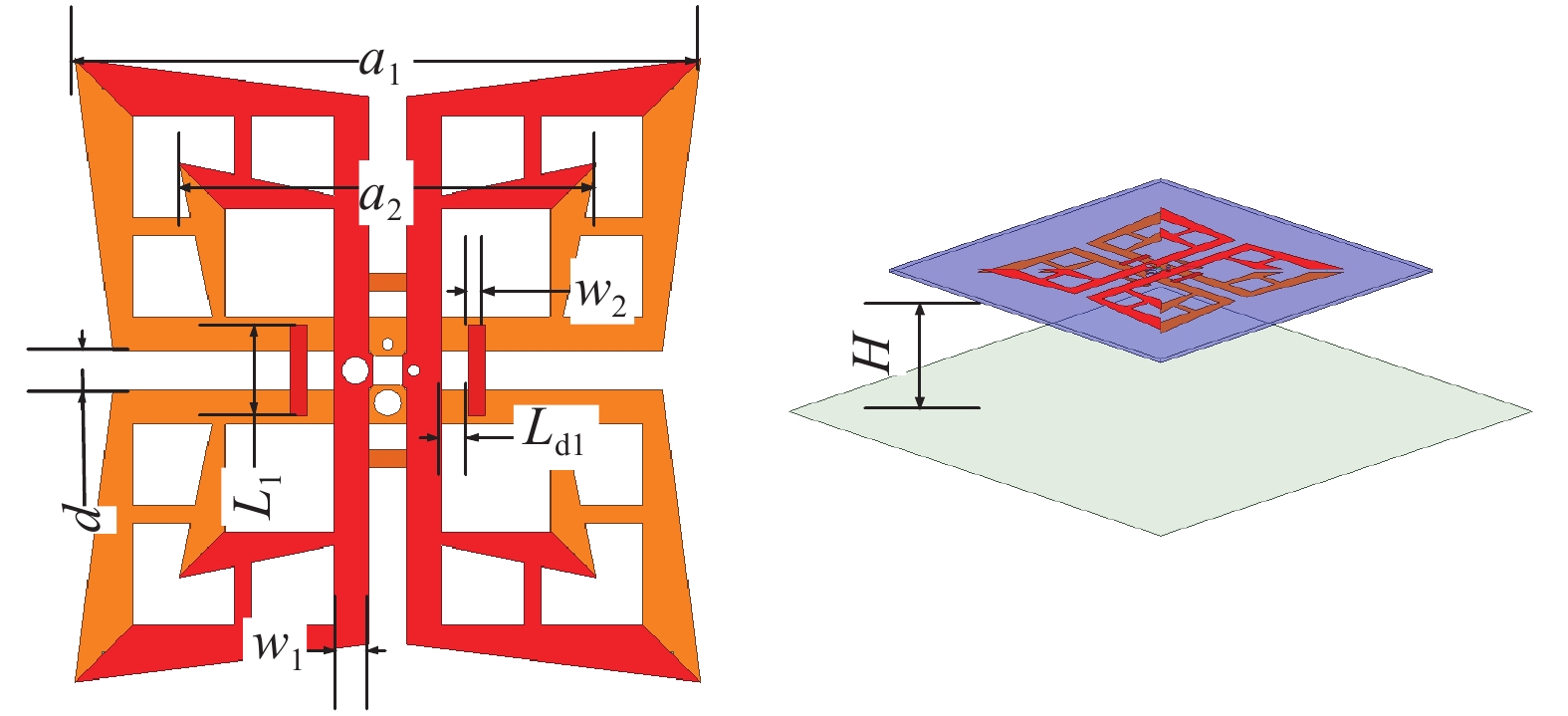

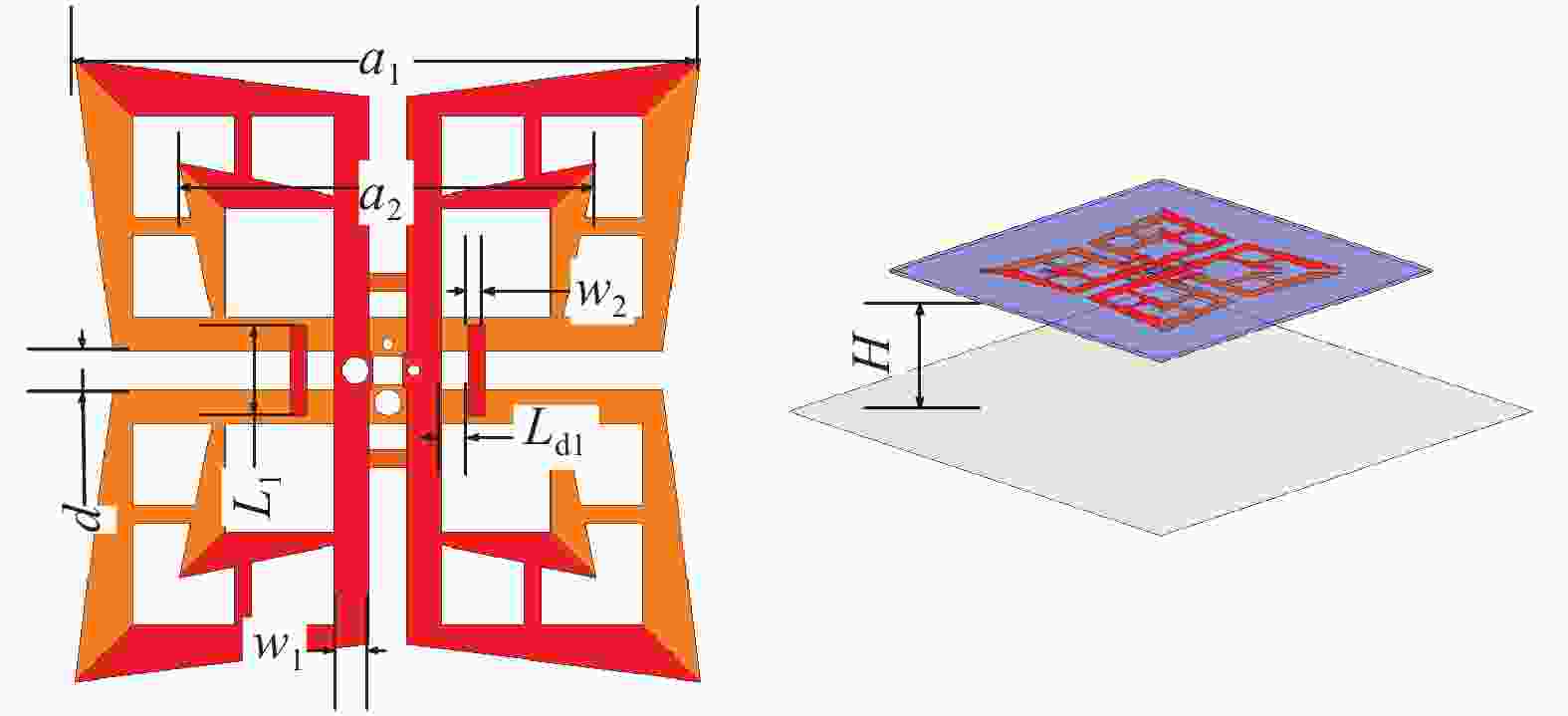

    图  3  DPSFD天线结构

    Fig.  3  Configuration of wideband DPSFD antenna

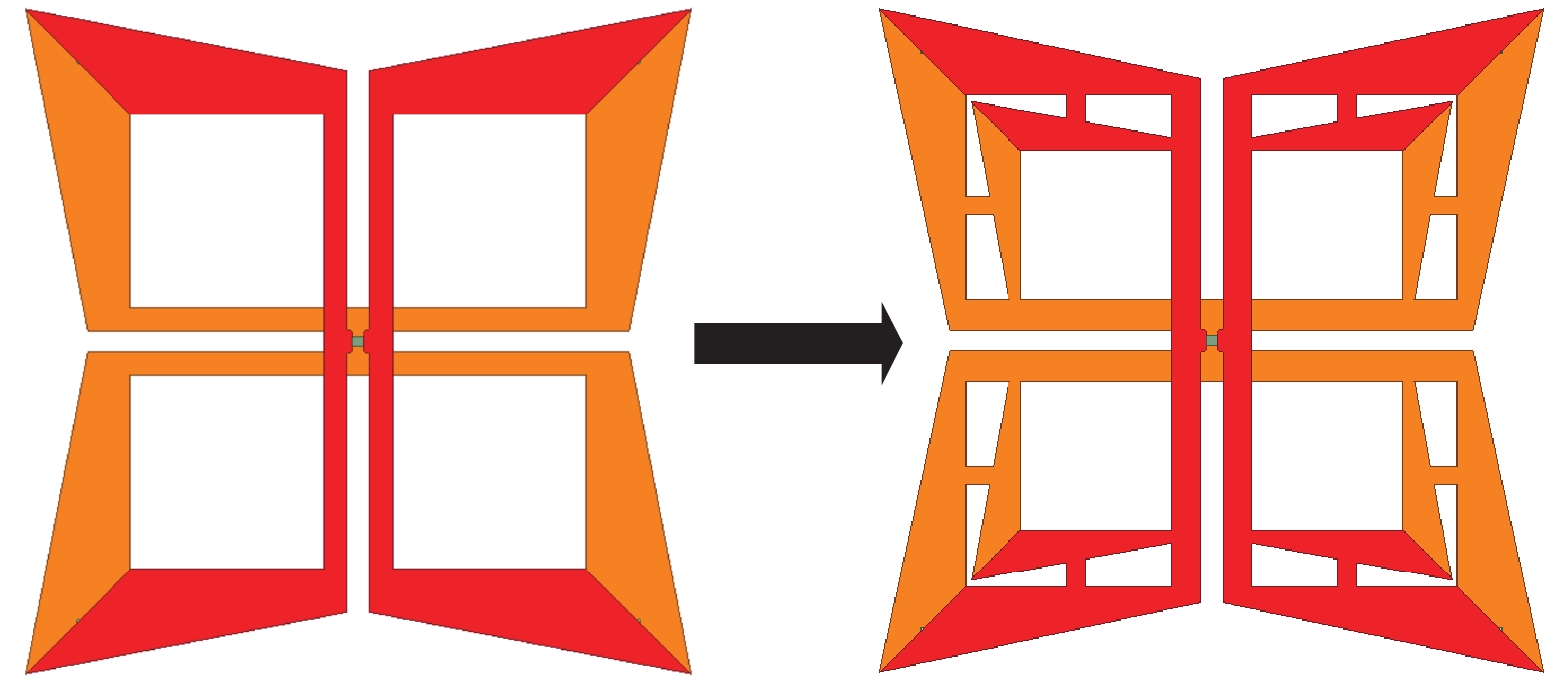

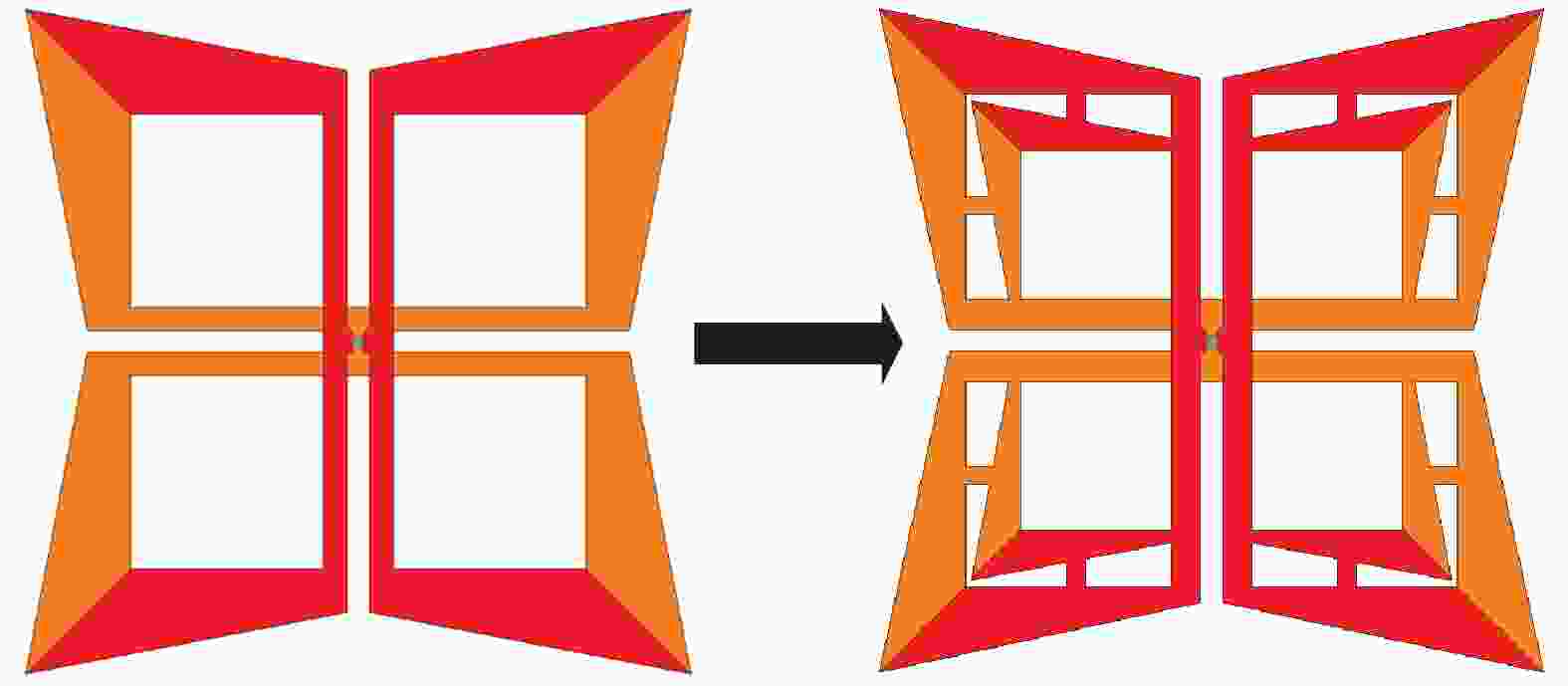

    图  4  增加共享折合臂的天线结构

    Fig.  4  Antenna construction of increasing folded shared-dipole

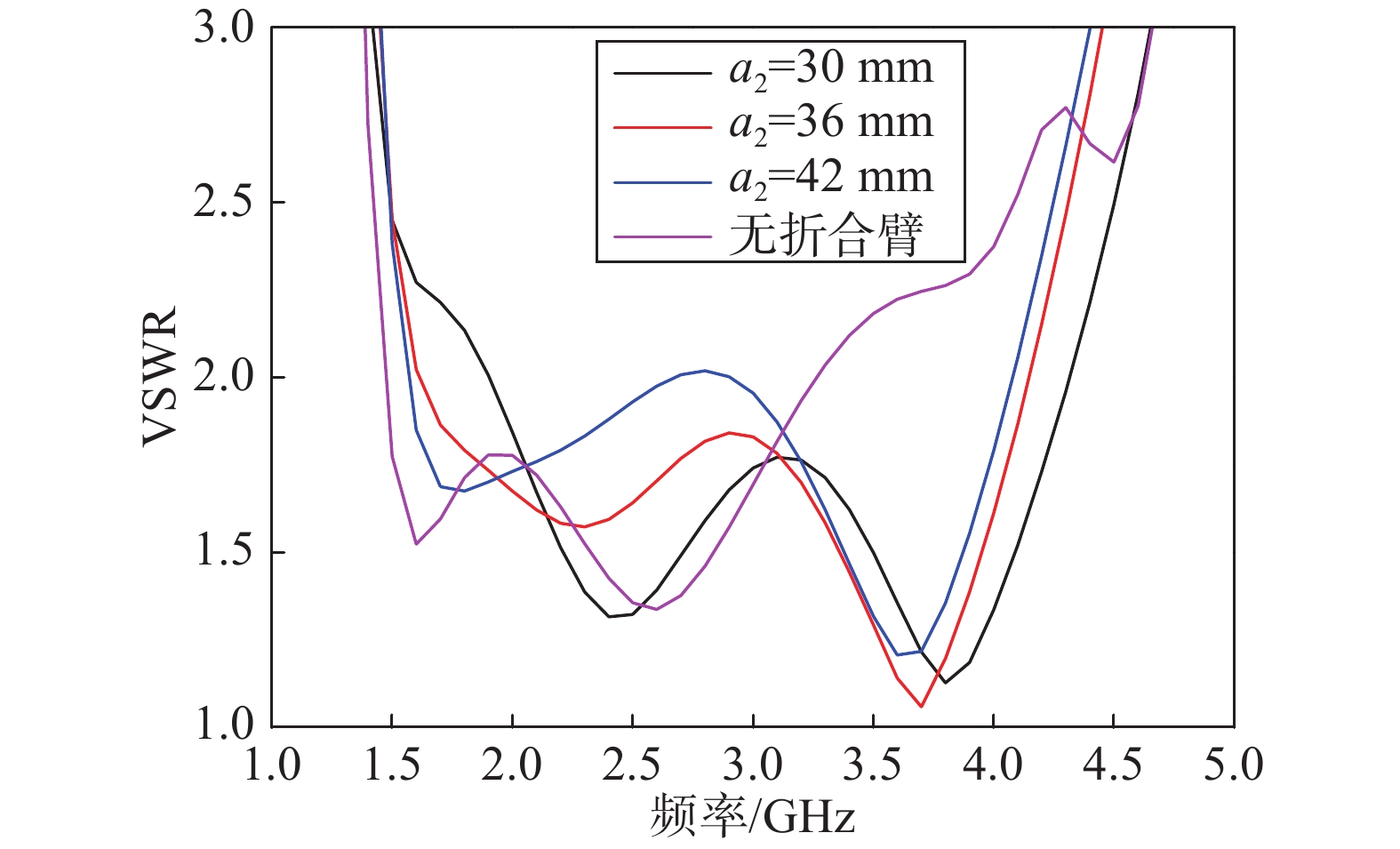

    图  5  折合臂长度a2对VSWR的影响

    Fig.  5  The influence of length a2 of folded shared-dipole on VSWR

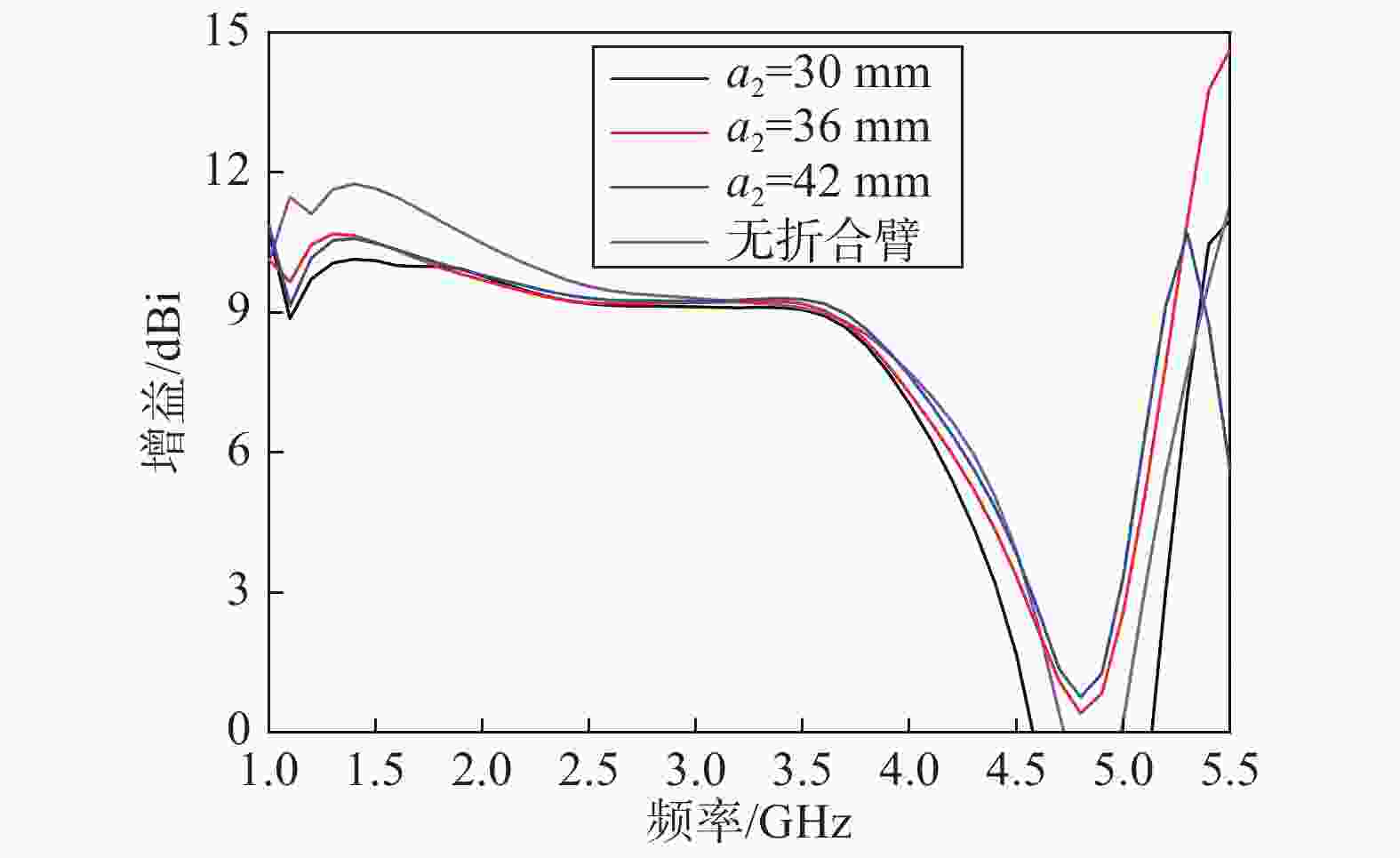

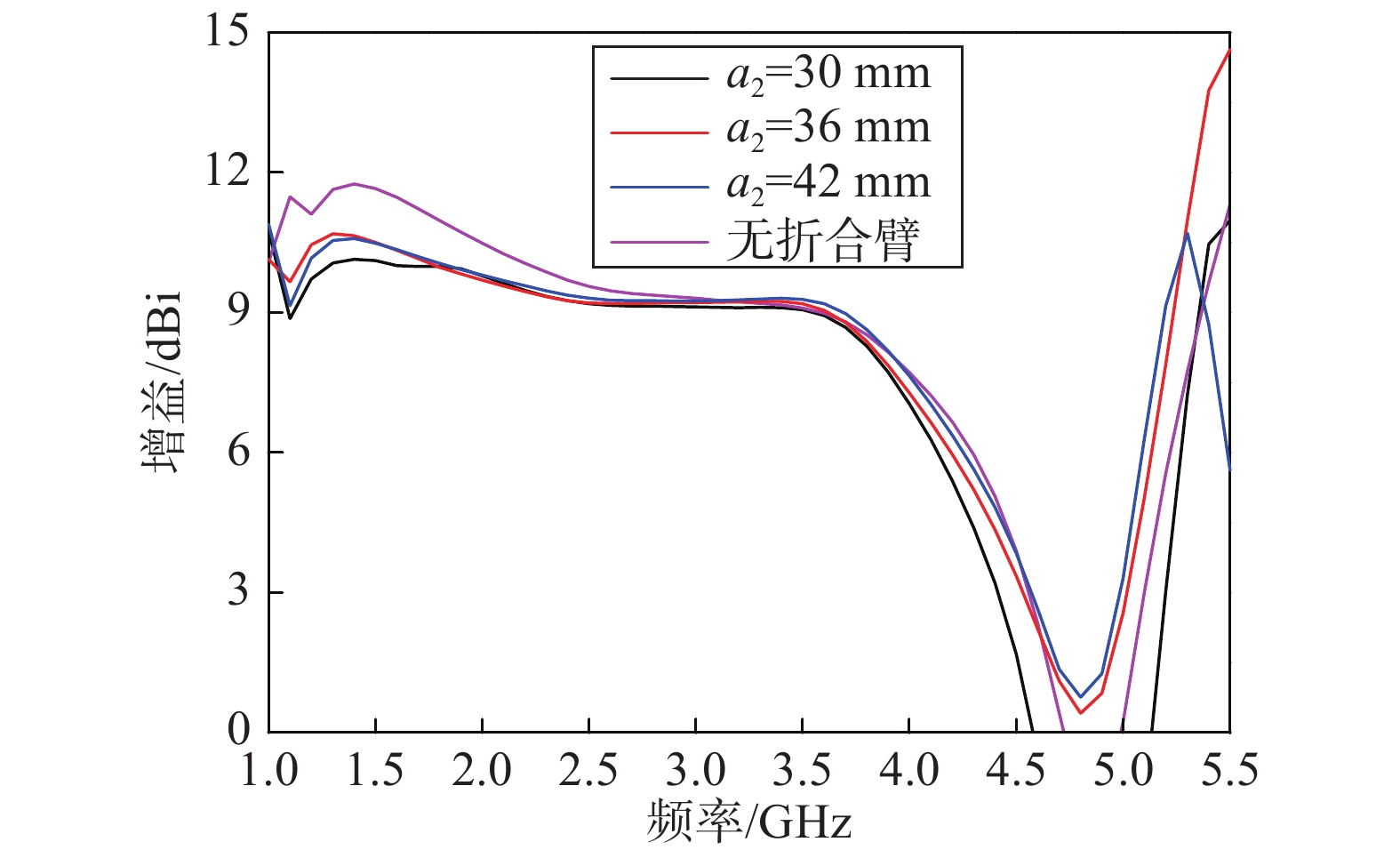

    图  6  折合臂长度a2对增益的影响

    Fig.  6  The influence of length a2 of folded shared-dipole on gain

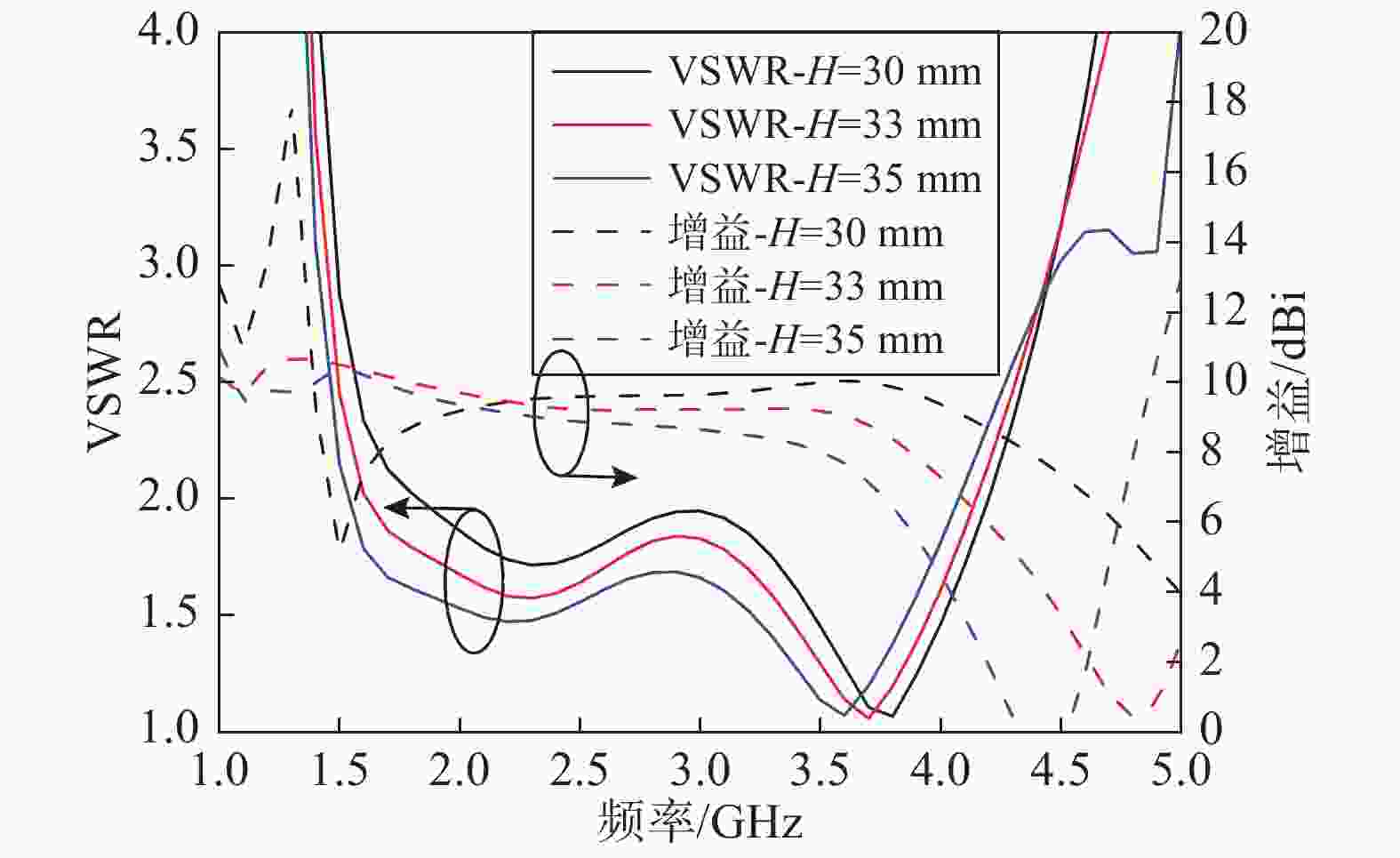

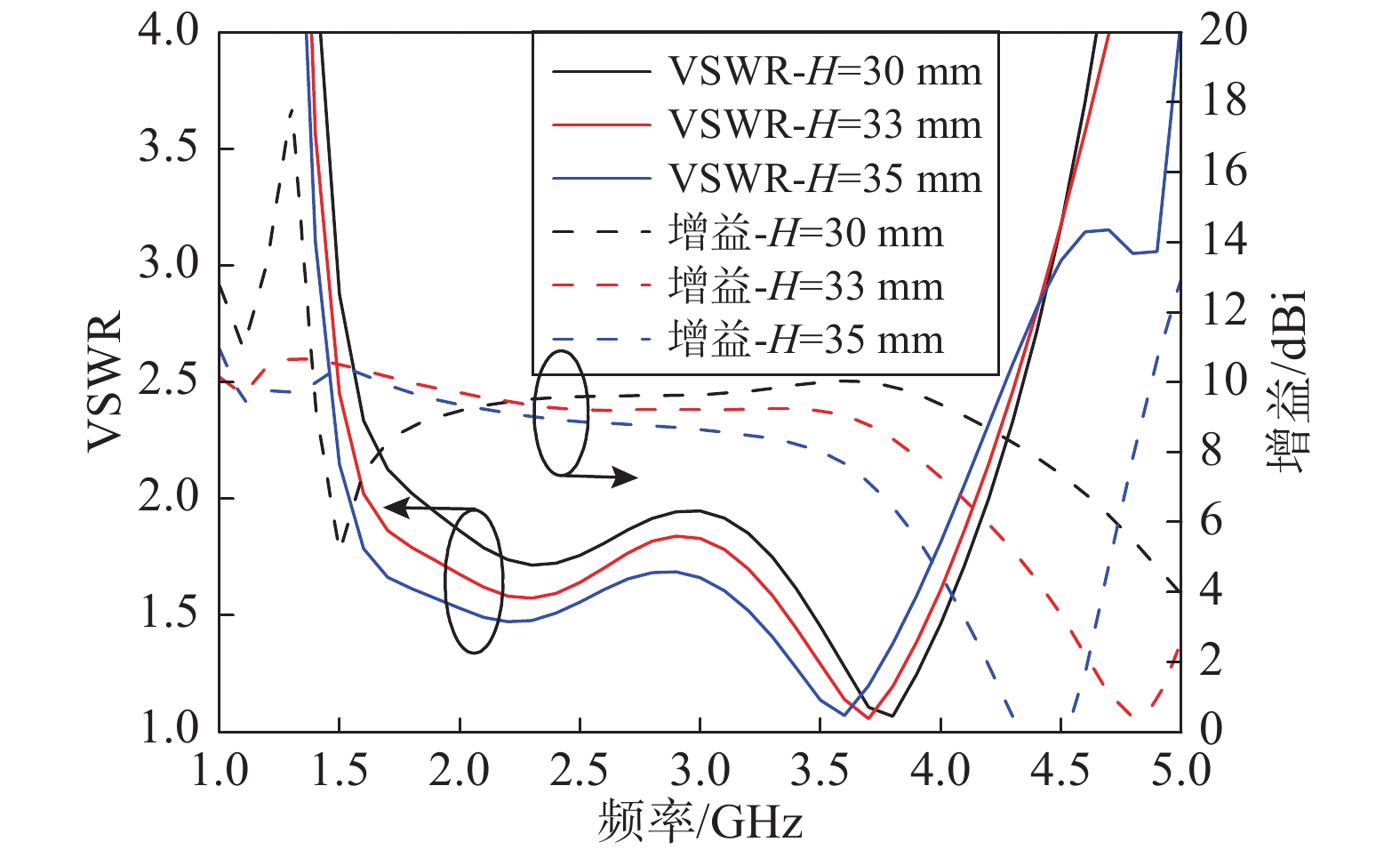

    图  7  反射板高度H对VSWR与增益的影响

    Fig.  7  The influence of reflector height H on VSWR and gain

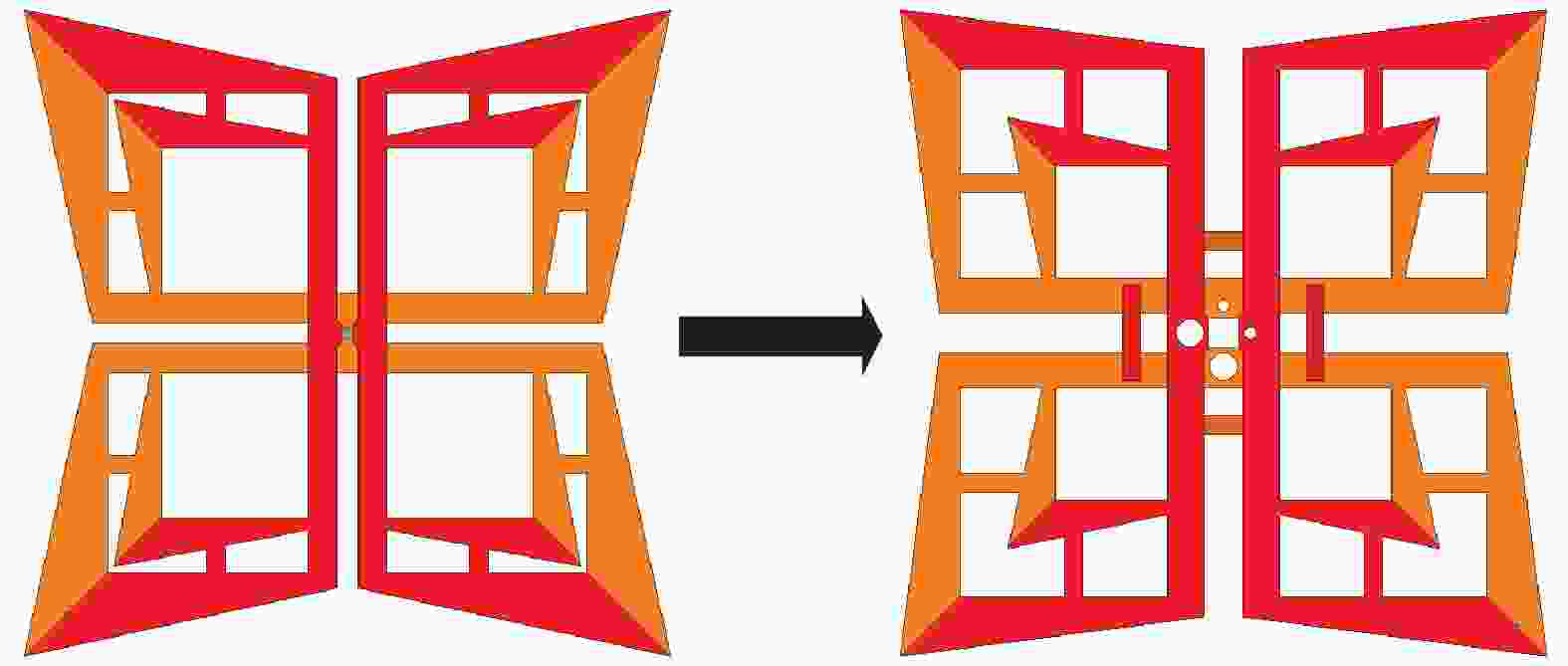

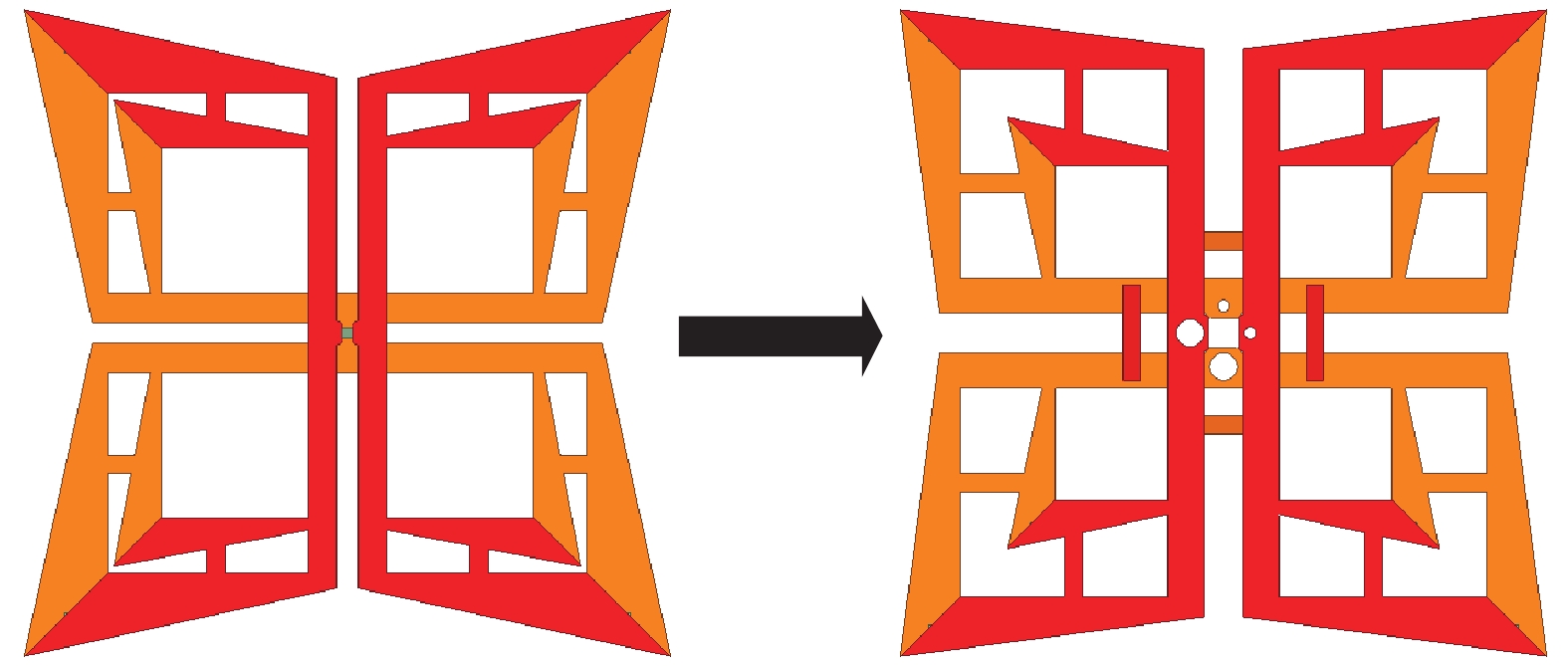

    图  8  增加枝节耦合线的天线结构

    Fig.  8  Antenna construction of increasing parasitic coupler elements

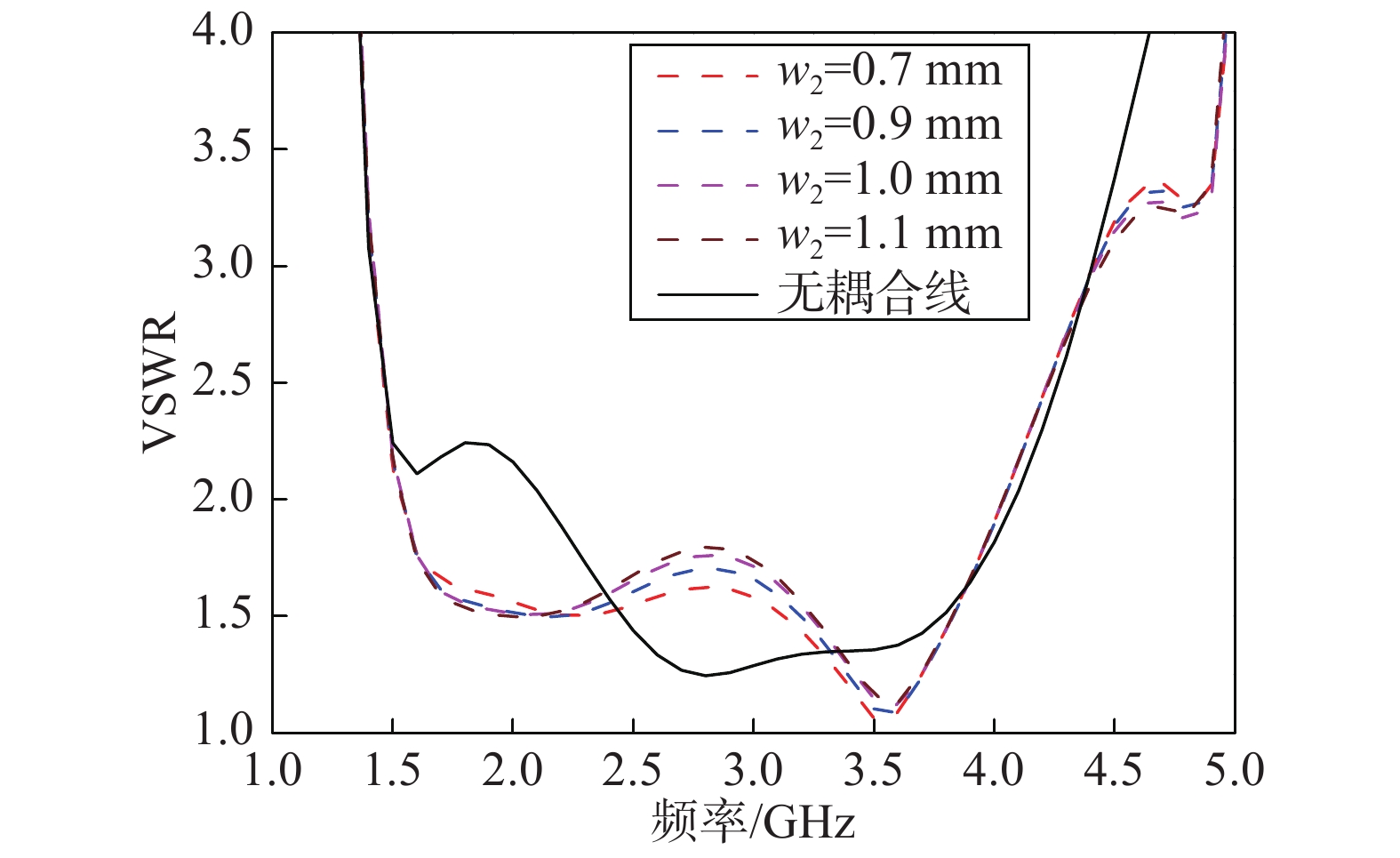

    图  9  耦合线宽度w2对VSWR的影响

    Fig.  9  The influence of coupler width w2 on VSWR

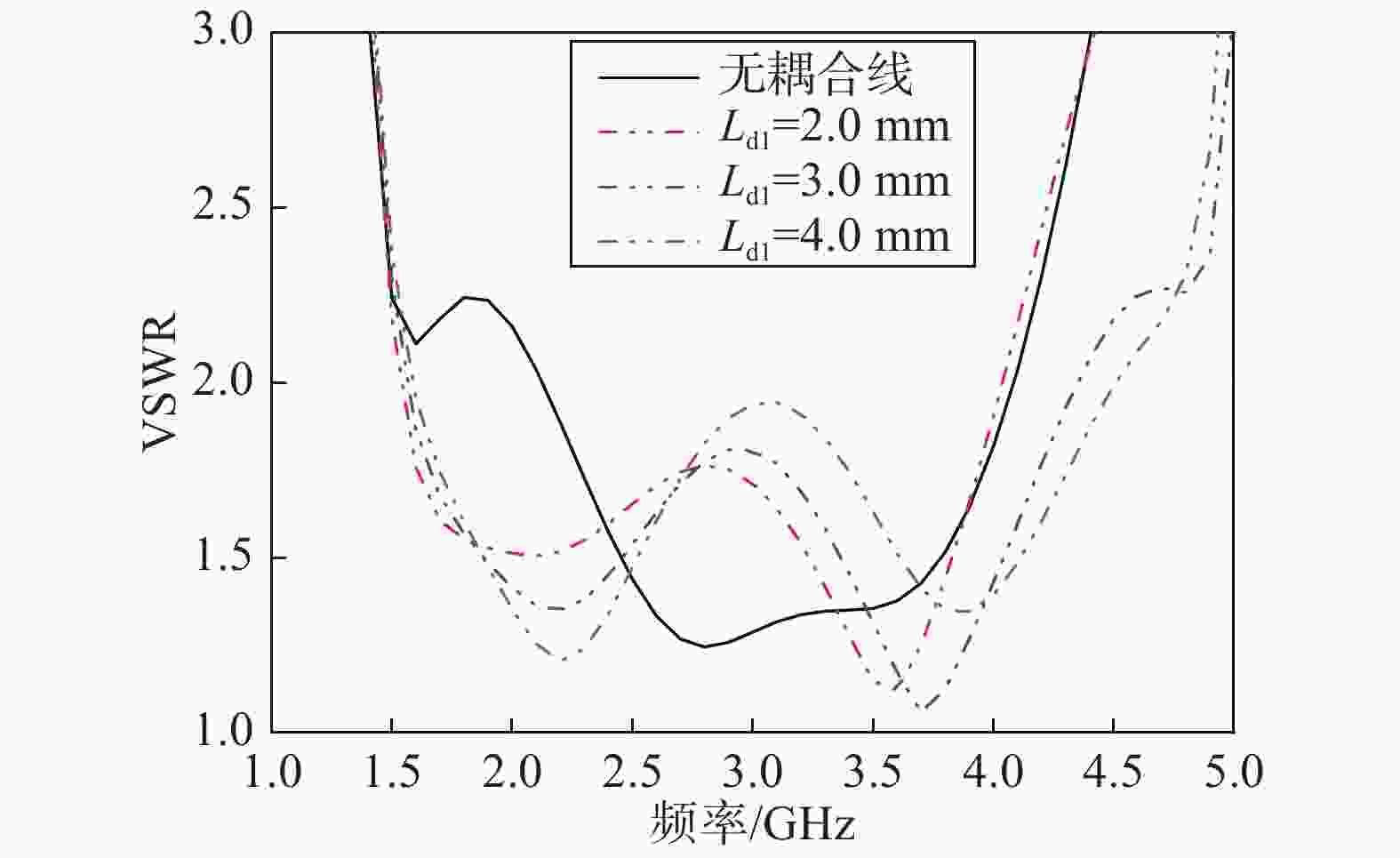

    图  10  耦合线距传输线距离Ld1对VSWR的影响

    Fig.  10  The influence of distance between coupler and transmission line Ld1 on VSWR

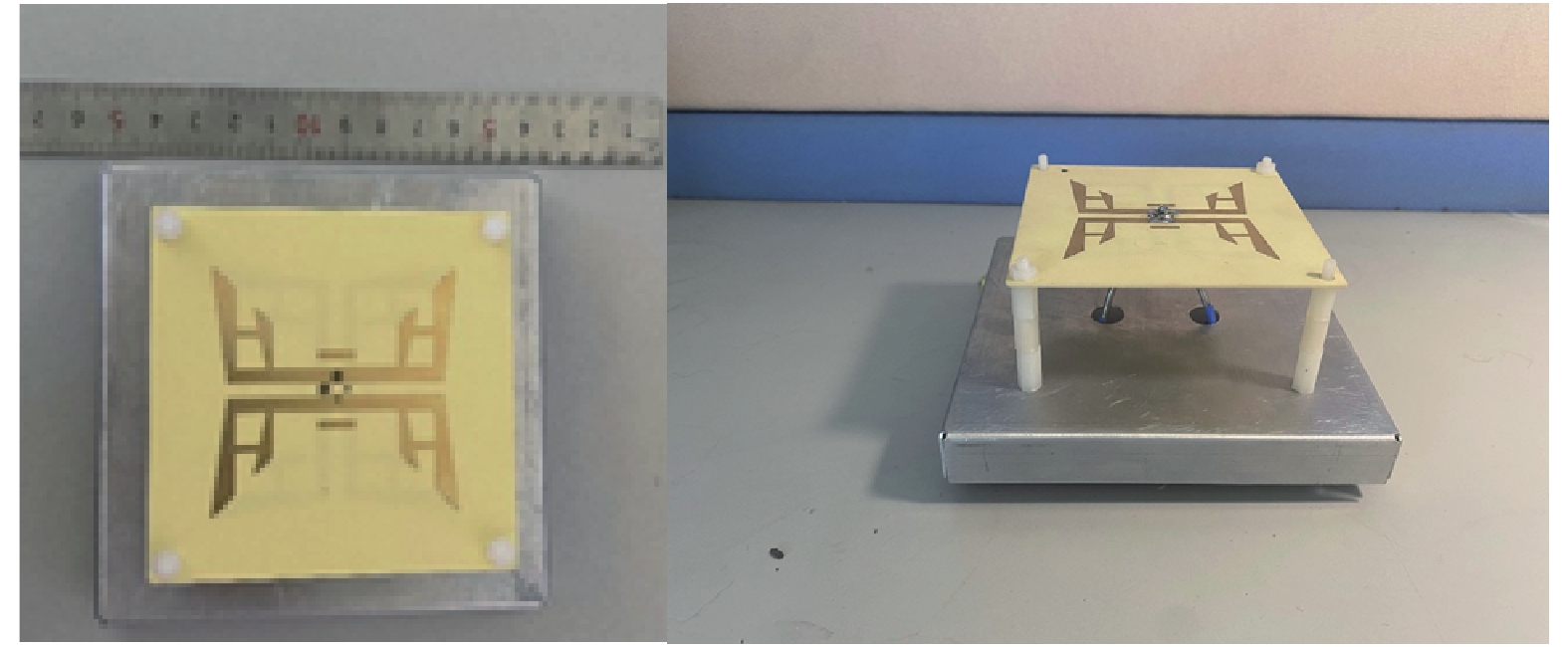

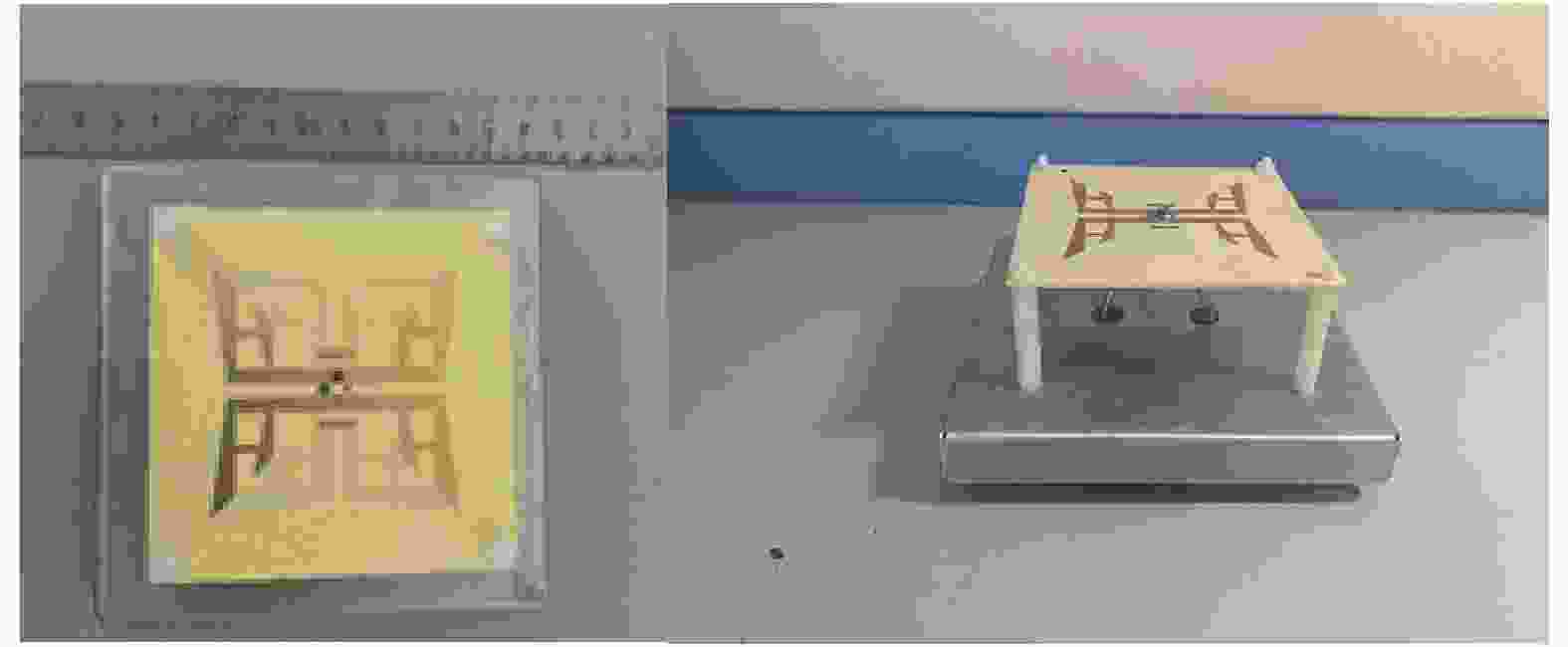

    图  11  宽带DPSFD天线实物图

    Fig.  11  Photograph of the broadband DPSFD antenna

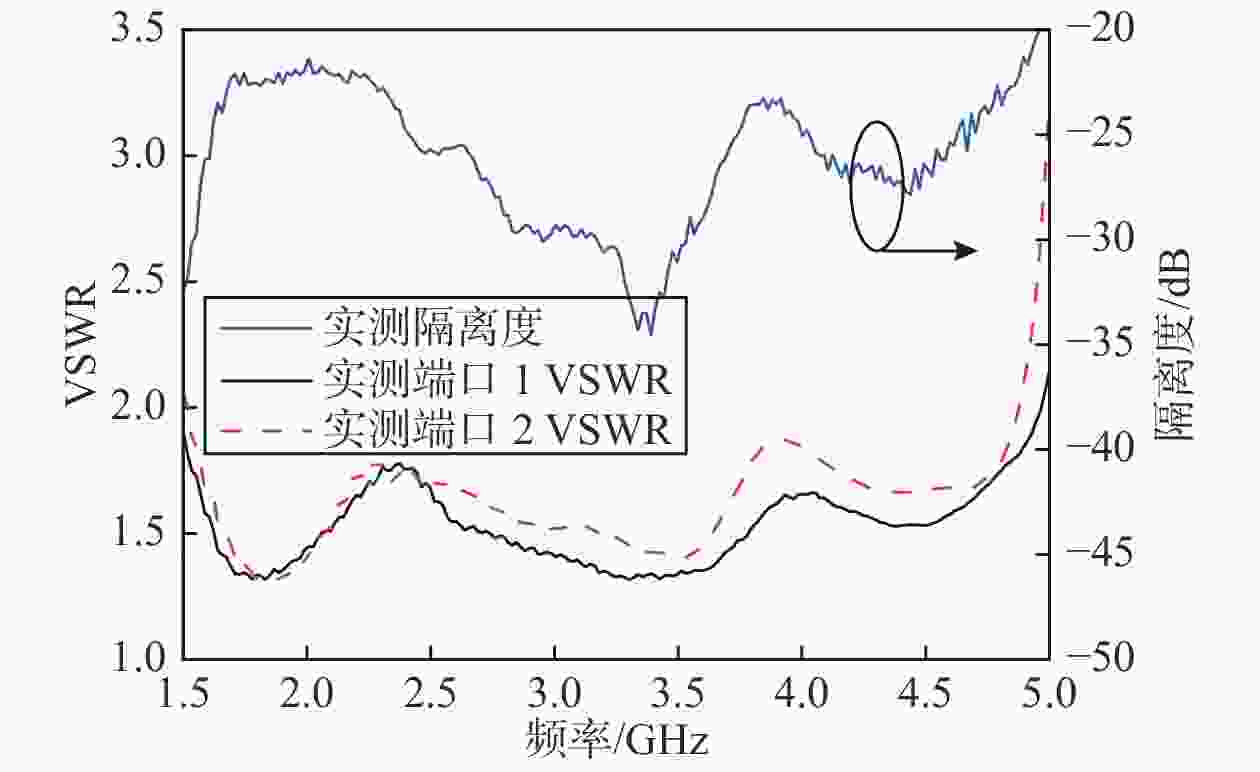

    图  12  天线的实测VSWR和隔离度

    Fig.  12  Measured VSWR and isolation results of the antenna

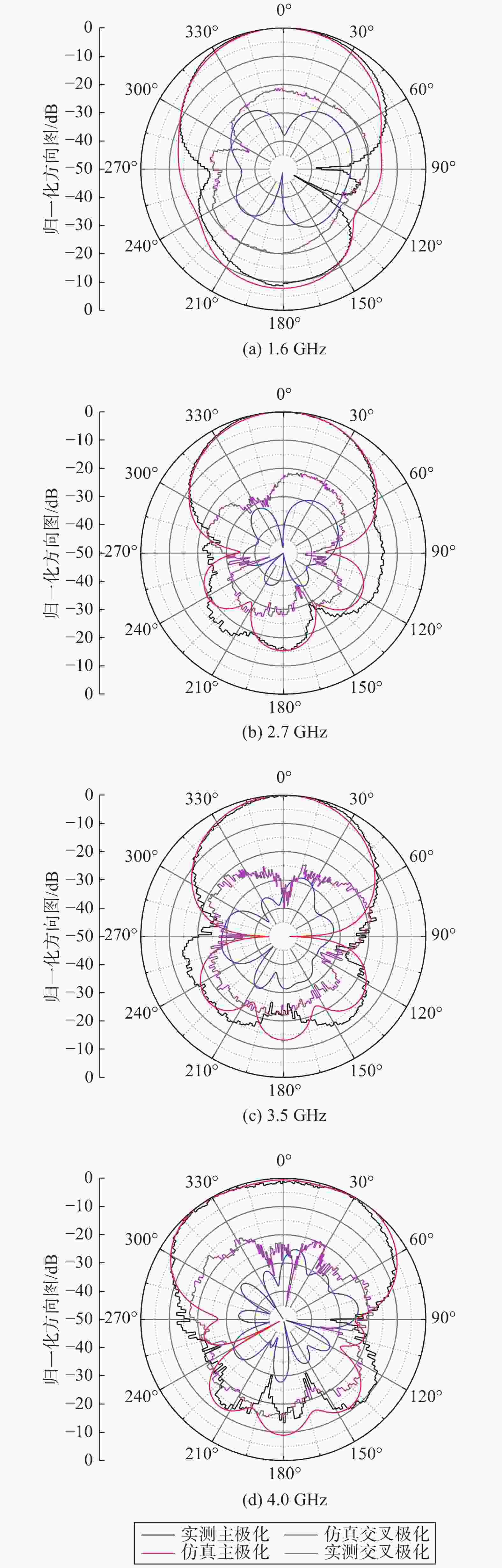

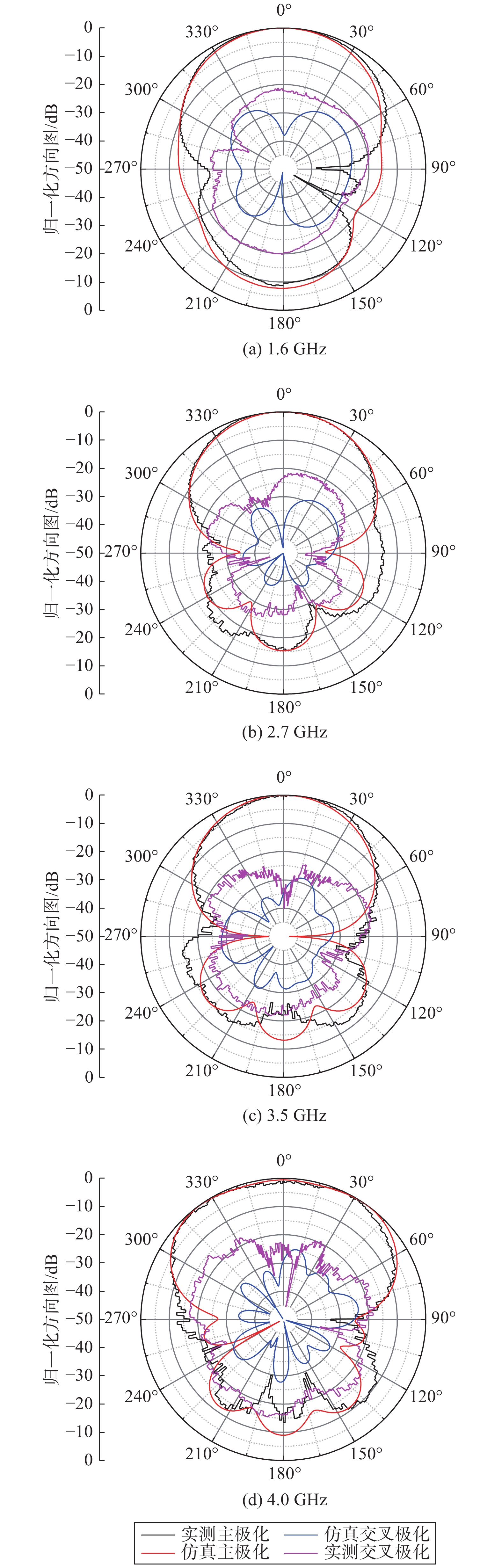

    图  13  天线实测与仿真方向图对比

    Fig.  13  Compared simulated and measured patterns of the antenna

    表  1  DPFSD天线结构参数

    Tab.  1  Parameters of the wideband DPFSD antenna structure mm

    参数取值参数取值
    a150.0L18.0
    a236.0w21.0
    w11.2Ld13.0
    d3.3H33.0
    下载: 导出CSV

    表  2  不同频点天线的方向特性

    Tab.  2  Characteristics of gain in different frequencies

    频率/GHz波束宽度/(°)增益/dBi
    1.6807.8
    2.0768.3
    2.7768.5
    3.0748.7
    3.5708.9
    4.0866.9
    下载: 导出CSV

    表  3  本文天线与相关文献天线性能比较

    Tab.  3  Performance comparison of dual-polarized antennas

    文献天线尺寸高度/mmVSWR隔离度/dB频带/GHz
    [3] 60 mm×60 mm 21 <2 >19 2.1~5.1
    [4] 82 mm×82 mm 25 <2 >25 2.0~4.0
    [10] 50 mm×50 mm 37 <2 >20 1.8~3.7
    [15] 50 mm×50 mm 33 <2 >36 1.6~2.9
    本文 50 mm×50 mm 33 <2 >22 1.6~4.0
    下载: 导出CSV
  • [1] BAO Z, ZONG X, NIE Z, et al. Design and discussion of a broadband cross-dipole with high isolation and low cross-polarisation utilising strong mutual coupling[J]. IET microwaves antennas & propagation,2014,8(5):315-322.
    [2] ZAHARIS Z D, GRAVAS I P, YIOULTSIS T V, et al. Exponential log-periodic antenna design using improved particle swarm optimization with velocity mutation[J]. IEEE transactions on magnetics,2017,53(6):1-4.
    [3] 何彬, 陈星. 新型超宽带双极化电磁偶极子天线[J]. 太赫兹科学与电子信息学报, 2019, 17(6): 1023-1026.

    HE B, CHEN X. A new ultra wideband dual polarization electromagnetic dipole antenna [J] Journal of Terahertz science and electronic information, 2019, 17(6): 1023-1026. (in Chinese)
    [4] 祝聪聪, 王斌, 廖晨阳, 等. 面向5G微基站的双频双极化电磁偶极子天线设计[J]. 电波科学学报,2020,35(5):769-775. DOI: 10.13443/j.cjors.2019061901

    ZHU C C, WANG B, LIAO C Y, et al. Design of dual-band dual-polarized magneto-electric dipole antenna for 5G microcell base station[J]. Chinese journal of radio science,2020,35(5):769-775. (in Chinese) DOI: 10.13443/j.cjors.2019061901
    [5] GOU Y, YANG S, LI J, et al. A compact dual-polarized printed dipole antenna with high isolation for wideband base station applications[J]. IEEE transactions on antennas & propagation,2014,62(8):4392-4395.
    [6] CUI Y, LI F, YAN P, et al. A novel dual-polarized broadband planar antenna for base stations[C]// IEEE International Symposium on Antennas & Propagation & USNC/URSI National Radio Science Meeting, 2015.
    [7] 南敬昌, 王明寰. 超宽带阶梯形微带单极子天线的设计与研究[J]. 电波科学学报,2021,36(2):225-230. DOI: 10.13443/j.cjors.2019111701

    NAN J C, WANG M H. Design and research of ultra-wideband stepped microstrip monopole antenna[J]. Chinese journal of radio science,2021,36(2):225-230. (in Chinese) DOI: 10.13443/j.cjors.2019111701
    [8] 于大群, 孙磊, 吴鸿超. 一种高隔离低交叉极化等相位中心双极化开槽天线设计[J]. 微波学报, 2020, 36(3): 26-30.

    YU D Q, SUN L, WU H C. Design of a high isolation low cross polarization equal phase center dual polarization slotted antenna[J]. Journal of microwave, 2020, 36(3): 26-30. (in Chinese)
    [9] WEN D L, ZHENG D Z, CHU Q X. A dual-polarized planar antenna using four folded dipoles and its array for base stations[J]. IEEE transactions on antennas & propagation,2016,64(12):5536-5542.
    [10] 罗秋强, 陈昌明, 夏佳明, 等. 一种适用于LTE和Sub-6 GHz频段的宽带双极化基站天线[J]. 电子器件, 2020, 43(2): 327-331.

    LUO Q Q, CHEN C M, XIA J M, et al. A wideband dual-polarization base station antenna for let and sub-6 GHz bands applications [J]. Electronic devices, 2020, 43(2): 327-331.
    [11] WEN D, ZHENG D, CHU Q. A dual-polarized planar antenna using four folded dipoles and its array for base stations[J]. IEEE transactions on antennas and propagation,2016,64(12):5536-5542. DOI: 10.1109/TAP.2016.2623660
    [12] 黄宾虹, 薛锋章. 一种新型的宽频带双极化基站天线[J]. 移动通信,2009,34(18):42-44. DOI: 10.3969/j.issn.1006-1010.2009.18.010
    [13] LUO Y, CHU Q X, WEN D L. A plus/minus 45 degree dual-polarized base-station antenna with enhanced cross-polarization discrimination via addition of four parasitic elements placed in a square contour[J]. IEEE transactions on antennas & propagation,2016,64(4):1514-1519.
    [14] 唐赢, 梁仙灵, 王堃, 等. 一种超宽带双极化阵列天线的设计[J]. 电波科学学报,2021,36(1):20-26+35. DOI: 10.13443/j.cjors.2019093001

    TANG Y, LIANG X L, WANG K, et al. Design of an ultra-wideband dual-polarized array antenna[J]. Chinese journal of radio science,2021,36(1):20-26+35. (in Chinese) DOI: 10.13443/j.cjors.2019093001
    [15] WEN L H, GAO S, LUO Q, et al. Compact dual-polarized shared-dipole antennas for base station applications[J]. IEEE transactions on antennas and propagation,2018,66(12):6826-6834. DOI: 10.1109/TAP.2018.2871717
    [16] 钟顺时. 天线理论与技术[M]. 2版. 北京: 电子工业出版社, 2015.
